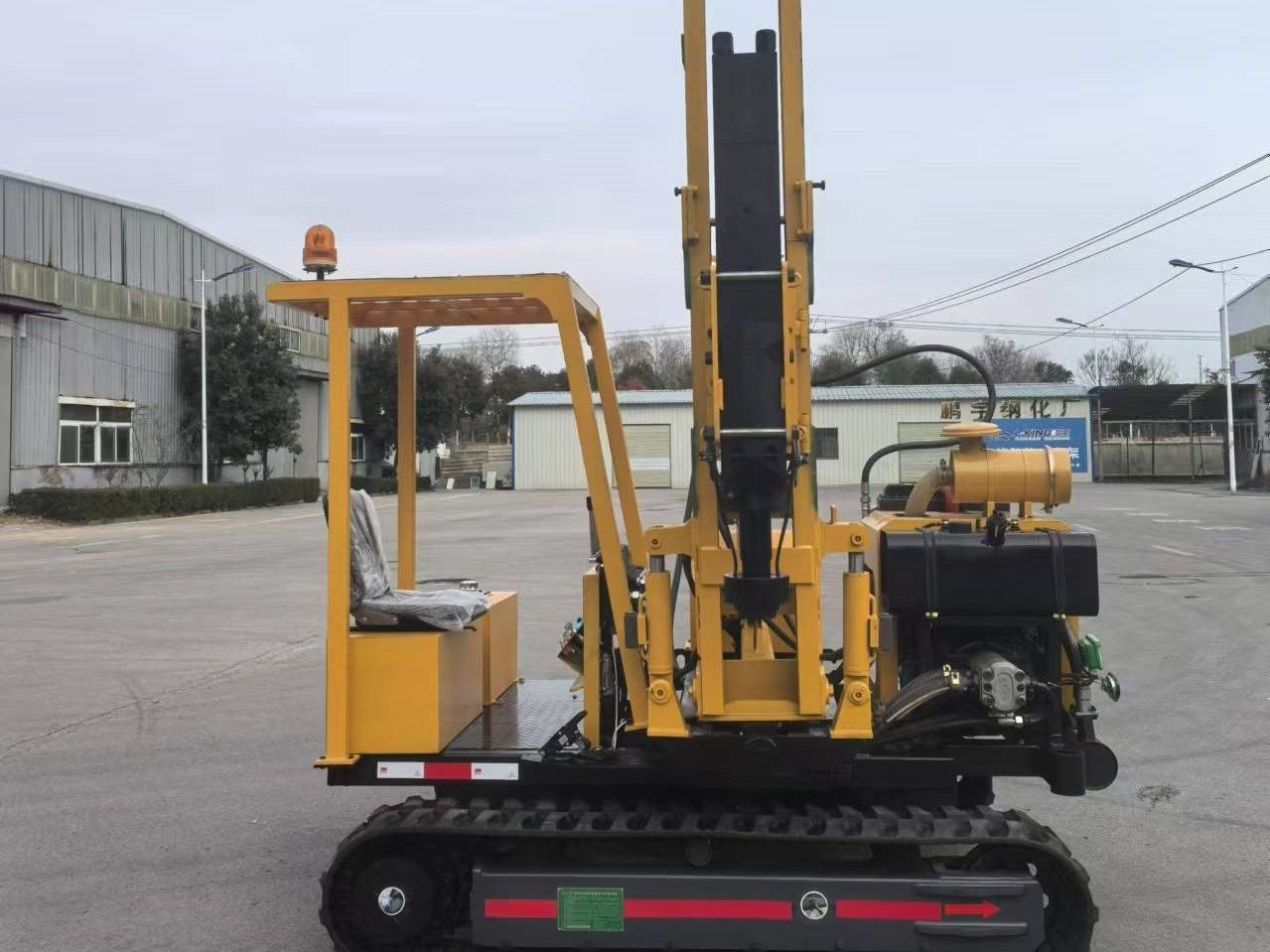

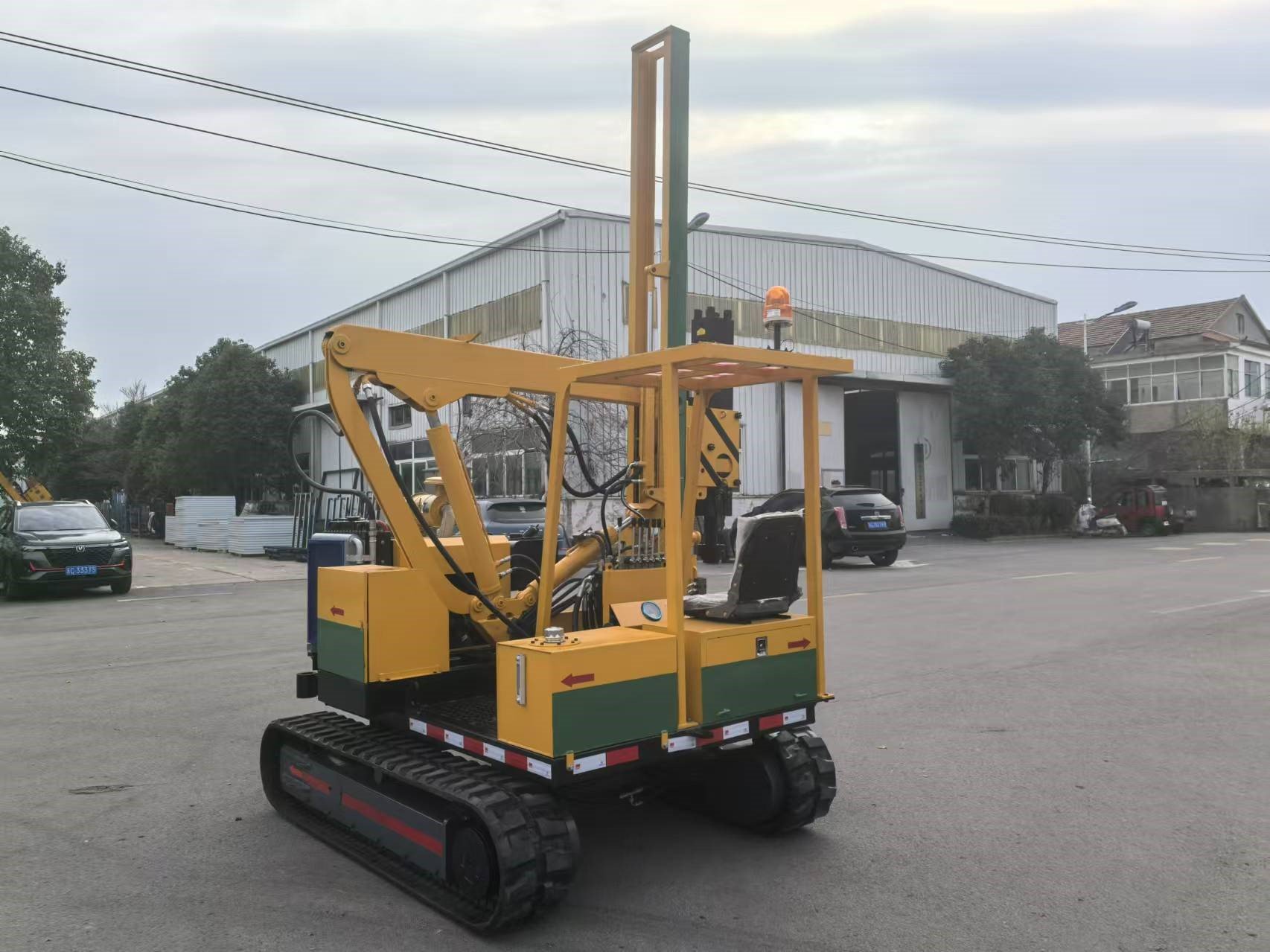

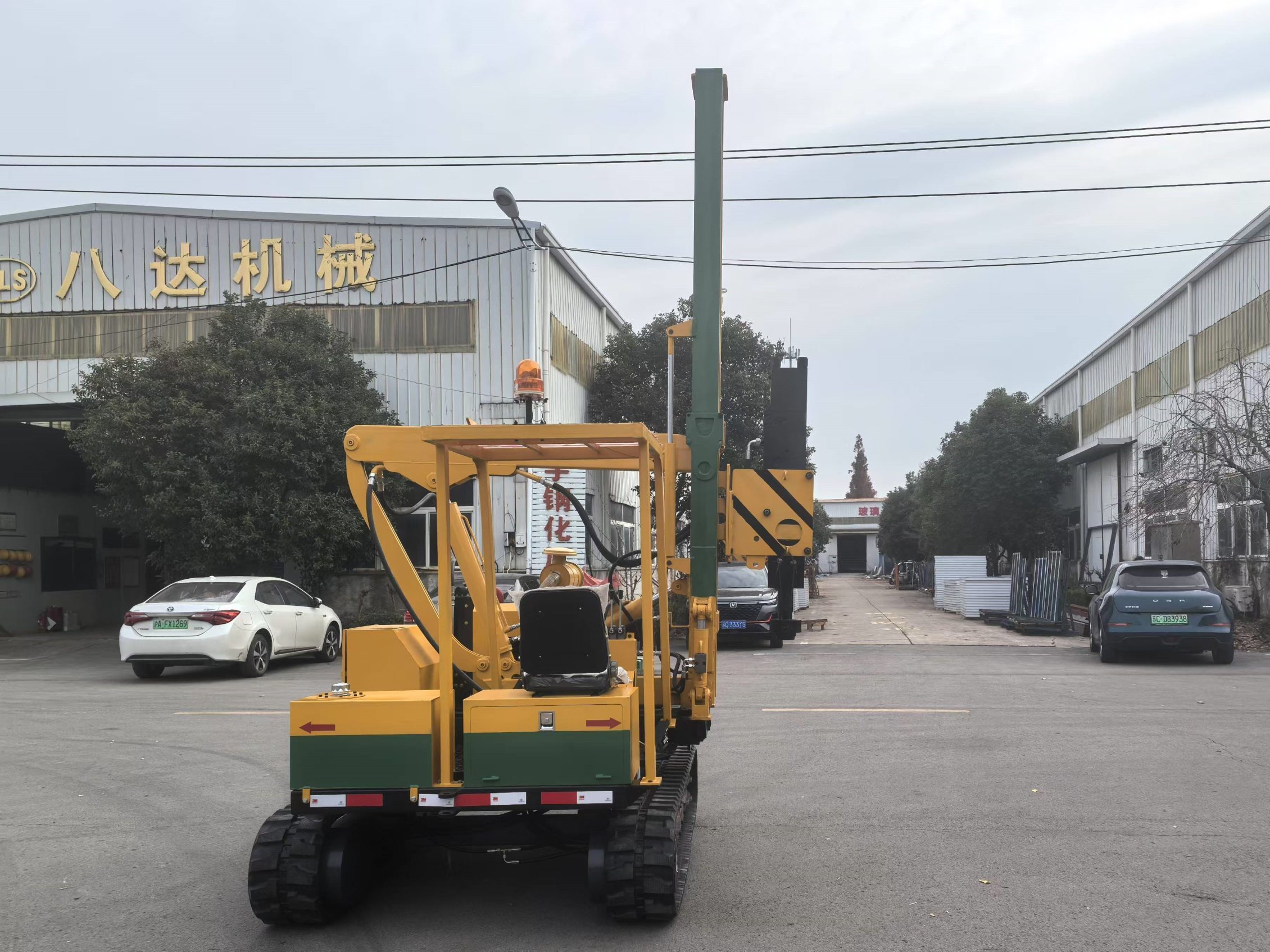

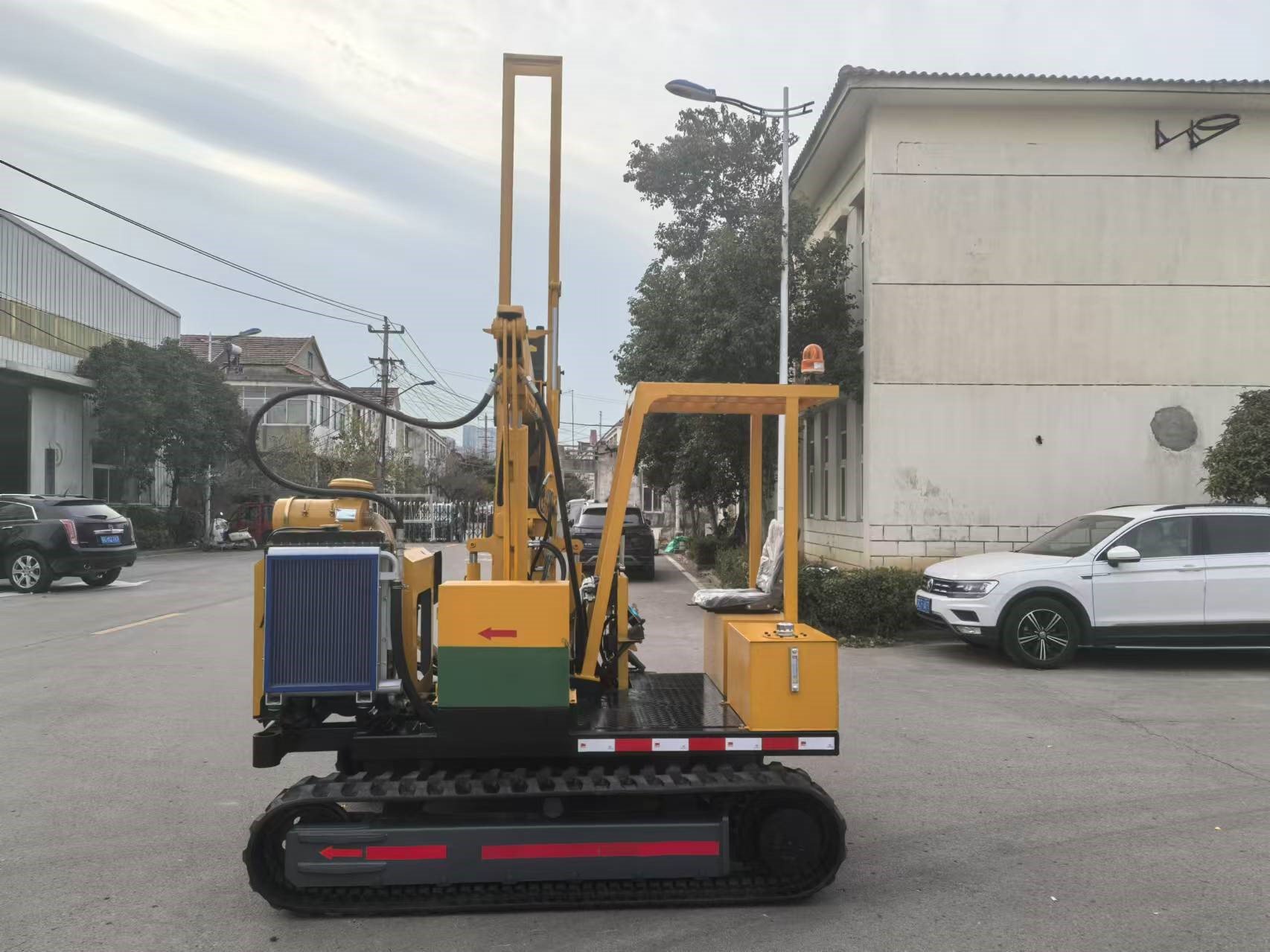

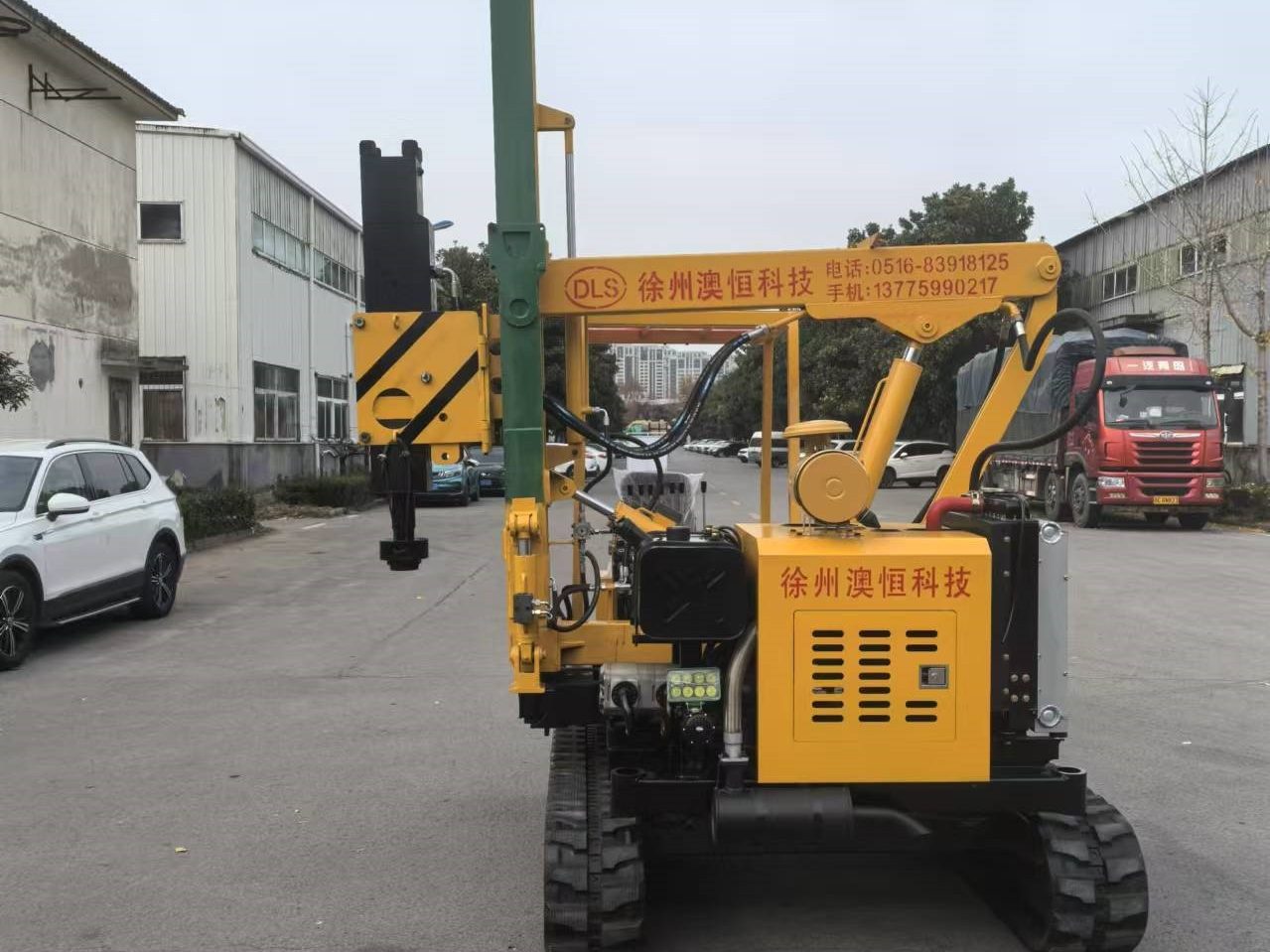

Aoheng Machinery Crawler Pile Driver
Basic feature
- Max stroke of hammer can reach 5m.
- Borer pole and pile cap can have a special structure and long service life.
- Guide rail equipment with double-row chain makes machine high safety coefficient.
- High-end cab configuration, large space makes driving-environment comfortable.
- Equipped with angle digital indicator to dajust angle quickly
- Guard rail vertical to the ground when piling, can most reduce the effect of vibration on pile verticality.

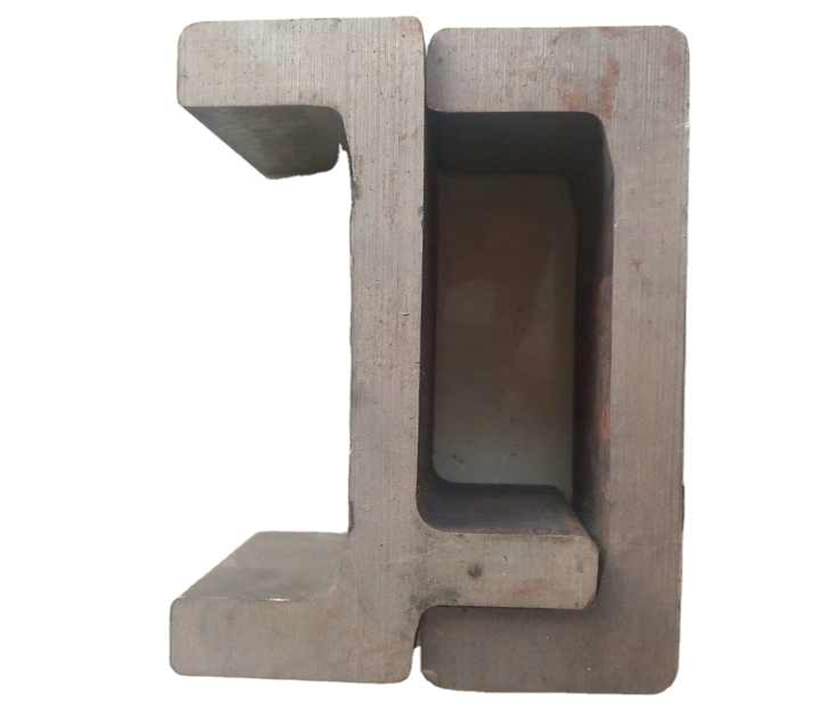

- The telescopic column is made of super thick J-shaped steel.
FOB Price 15000 USD/Set(Negotiable）

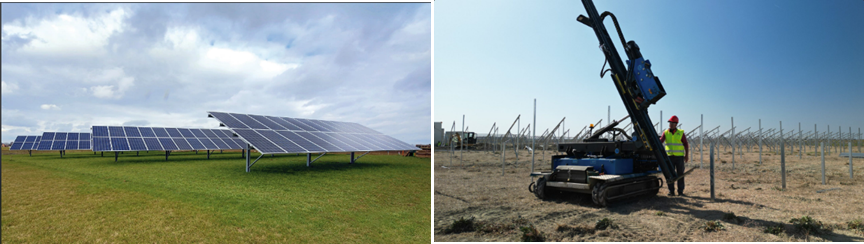

Pile Driver for Solar PV Station and Road Guardrail Install
Mainly designed for photovoltaic power station construction, this machine excels in pile driving, screwing, spiral drilling, and down-the-hole hammering. It is equipped with a crawler travel system and a customizable hammer cap, suitable for various pile types. Optional automatic plumb with vertical guide rail and GPS positioning are available.
| No. | Project item | Unit | Value | Note |
| 1 | Product model | set | LdYDB385 | FAW xichai/changchai diesel. Equipped with flashing warning lights |
| 2 | Hydraulic hammer type | yc385 one set | High power high speed hammer. Inject nitregon 1.5Mpa | |
| 3 | Work flow of hydraulic hammer | L/min | 150max | At rated speed |
| 4 | Impact frequency | bpm | 350~800 | Change with the diesel engine speed |
| 5 | Punch rod diameter | mm | 85 | Made of spacial alloy steel, durable |
| 6 | Pile driving height | mm | 600~2800(5000) | Folded size. The size in brackets is for telescopic type. |
| 7 | Slider angle adjustment | Degree | 15 | Four directions: front, back, left, right |
| 8 | Hydraulic system pressure | Mpa | 16~20 | The pressure can be regulated with an insert pressure regulator that is accessory to the manifold valve. |
| 9 | Gear pump flow rate | L/min | 25+25 | Use China’s reputable big factory brands Product |
| 10 | Travel speed（max） | km/h | forward 5/10
backward 5 |
Two gears forward; one gear back |
| 11 | Total vehicle weight | kg | 3300 | Depending on the configuration |
| 12 | Engine rated power | kw | 33~39 | Equipped according to user needs |
| 13 | Engine rated speed | rpm | 3000 | |
| 14 | Track belt width | mm | 300 | When using wear-resistant rubber tracks, avoid turning on rough roads as much as possible |
| 15 | Dimensions (working)
Dimensions(folded) |
mm | 2500x2500x4020
2500x2000x2380 |
The track frame is made of thick-wall steel with high strength and rigidity. The shape is stable and hardly deformed, ensuring construction quality. |
| 16 | Pile cap | one
piece |
Made according to the shape of the pile section and use spacial alloy steel, durable | |
| 17 | Pile driving speed | m/min | 1.5~2 | About 200 to 300 piles are driven per shift according to the operation skills. |
| 18 | Chassis motor | set | 2 | Use high-performance large torque travel motor, stable and durable. |
| 19 | All hydraulic pipes | group | 1 | All hydraulic hoses are made by reputable Manufacturer. Hoses in key positions can withstand 40Mpa pressure. |
