Highway Guardrail Pile Driver
Basic feature
- Faw（First Automotive Works）xichai Diesel engine over 33kw (National lll emission standard).
- High pressure hydraulic gear pump with alloy aluminum housing.
- Pure aluminum radiator（Water and oil integration）.
- Double chain drive, equipped with clutch and can be towed.
- Guidance slide rail embedded with wear-resistant nylon plate. Wear-resisting alloy ring is used at the hinge.
- Can be equipped with radio two-speed full remote control (32 keys).
FOB Price 10300 USD/Set（Negotiable）

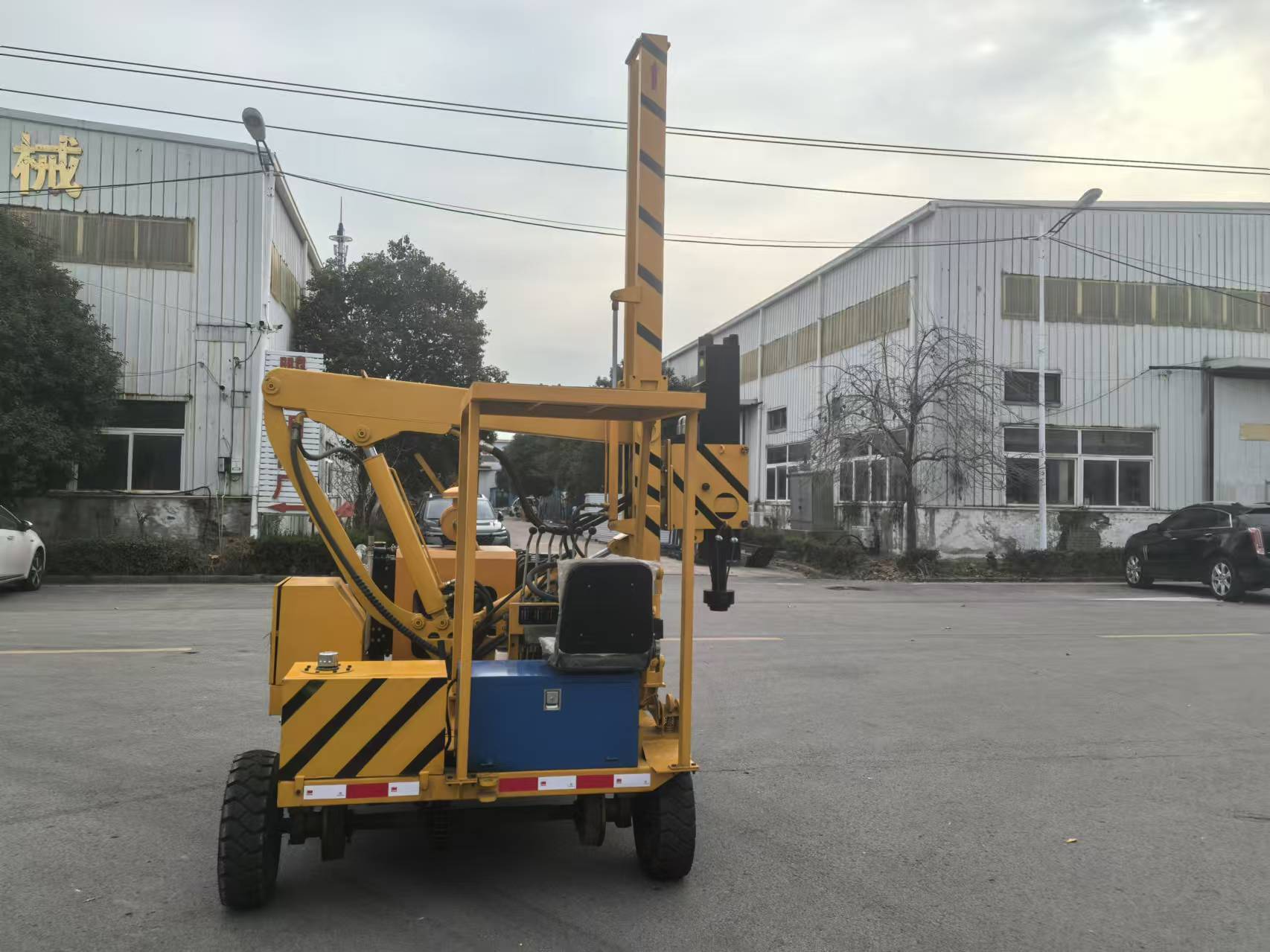

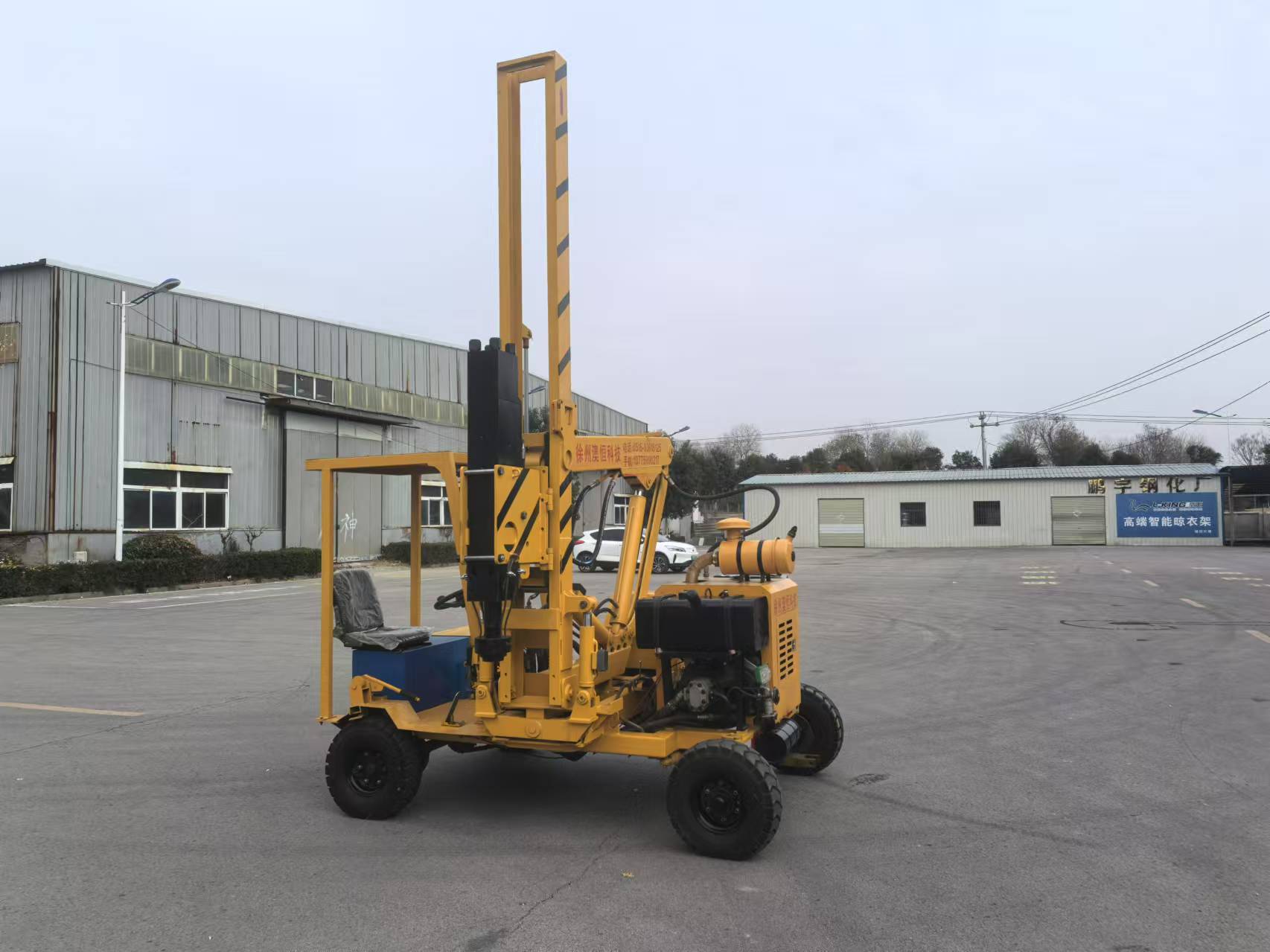

Pile Driver for Highway Guardrail Construction
Mainly designed for highway guardrail pile construction. It has the function of pile driving and pulling out pile upward. The rear wheel drive is equipped with a clutch, can be towed when the clutch is disengaged. Customizable hammer cap, suitable for various pile types. Optional automatic plumb with vertical guide rail and GPS positioning are available.
YDB-385pile driver(driving or pulling out piles）
| Project item | Unit | Value | Project item | Unit | Value | |
| Engine rated power | kw | 33~38 | Engine brand | FAW xichai/changchai | ||
| Dimensions (working)
Dimensions(folded) |
mm | 2500x2000x4020
2500x2000x2300 |
Hydraulic hammer
type |
yc360/yc385 | ||
| Pile driving height | m | 2.8 plus | Impact frequency | bpm | 350~800 | |
| Machine net weight | kg | 2300 | Hydraulic system pressure | Mpa | 16~20 | |
| Workflow of hydraulic hammer | L/min | 115max | Work pressure of hydraulic hammer | Mpa | 14~18 | |
| Pile driving speed | m/min | 2 | Punch rod diameter | mm | 85 | |
| Travel speed | km/h | 10~25 | Traction driving speed | km/h | 35max | |
It's easy to learn the operation by watching the video carefully. Guardrail Pile Driver（I）
The pile driver march, being unfolded from its folded state, forming a working state.
Guardrail Pile Driver（II）
The pile driver uses a 385 # hydraulic hammer to strike a rectangular steel pipe.
Guardrail Pile Driver（III）
The pile driver extends horizontally along the slide rail of the machine body. Carrying a 385 # hydraulic hammer.
Guardrail Pile Driver（IV）
Straightening of column (front and back direction). Carrying a 385 # hydraulic hammer.
Guardrail Pile Driver（V）
Straightening of column (left and right direction). Carrying a 385 # hydraulic hammer.
