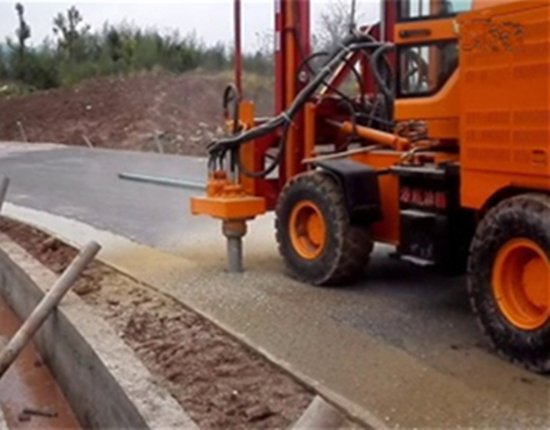

Road Fence Pile Driver. (Pounding pile, jacking up, drilling)
Drilling head basic feature
1. The integral gear head is composed of three parts. It is driven by a hydraulic hammer and hydraulic motor to drive the down-the-hole drill bit. Use a blower to blow away the ash slag.
2. The split and drag type uses a large high pressure screw air compressor to drive the pneumatic impact hammer and blow the ash slag away, and uses the hydraulic motor to twist the drill bit run.
3. The equipment can be attached with cyclone dust collector and bag filter. Two-stage dust protection to protect workers’ health and equipment life.
FOB Price 17500 USD/Set（Negotiable）

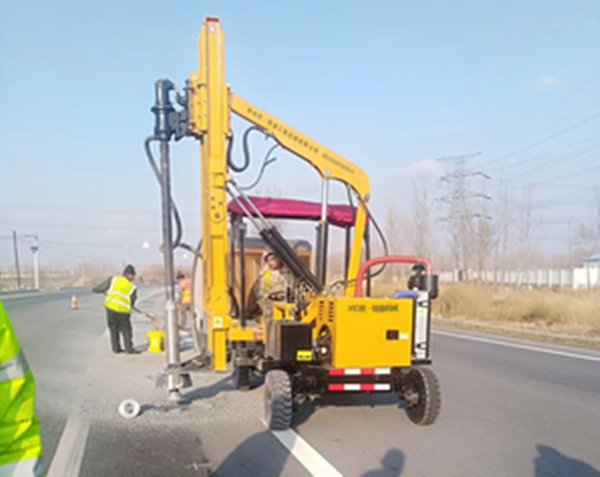

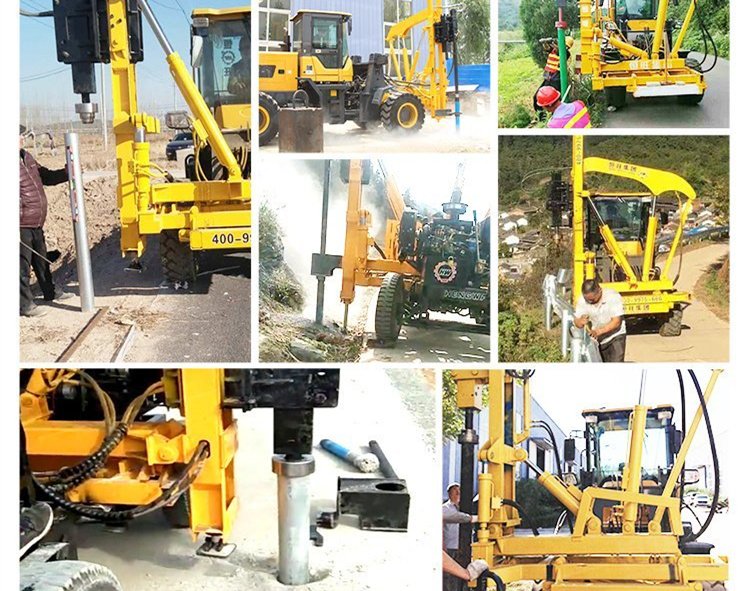

Pile Driver for Road Fence Project（Pound pile, jack up, drill）
Mainly designed for road fence pile project. In addition to the ordinary functions of the traditional pile driver, the drilling function has been added. Two types of drilling machines. The gearbox-type drilling head and air compressor are integrated; Another only the drilling head is attached with a towable air compressor.
YDBZ385-8pile driver(driving or pulling out piles and drill)
| Project item
|
Unit | Value |
|
Project item
|
Unit | Value |
| Engine rated power | kw | 33+51 | Engine brand | FAW xichai/weichai | ||
| Dimensions (working)
Dimensions(folded) |
mm | 2500x2000x3400
2500x2000x2400 |
8 cubic meters
Screw air compressor |
set | included | |
| Pile driving height | m | 2.7 | Air hammer Impact frequency | bpm | 1200 | |
| Machine net weight | kg | 3200 | Hammer Impact frequency | bpm | 500~900 | |
| Hydraulic system pressure | Mpa | 16~20 | Work pressure of hydraulic hammer | Mpa | 12~16 | |
| Hydraulic system flow rate | ml/r | 63 | Work flow rate of hydraulic hammer | ml/r | 50~63 | |
| Drill hole diameter | mm | 120~200 | Compressed air flow | M3/min | 8 | |
| Drilling speed | mm/min | 400 | Compressed air pressure | Mpa | 1~1.5 | |
| Travel speed | km/h | 10~20 | Traction driving speed | km/h | 30~40 | |
| Punch rod diameter | mm | 85 | Drilling depth | m | 0.5~1.7 | |
| Hydraulic hammer type | yc330~yc385 | Climbing ability | Degree | ≦25 | ||
| Power steering. Vacuum assisted braking is applied to all four wheels . Mast hydraulic folding. Four directional level ruler displays verticality. Including a 8 cubic meter screw high pressure Air compressor. Hydraulic support legs facilitate stable drilling operation. The pile driver and the air compressor can be divided into two parts or combined into one. The combined type eliminates the laboured operation of alternating hydraulic hammer and air hammer. Won multiple China invention patents. |
YDBZ385-10pile driver(driving or pulling out piles and drill)
| Project item
|
Unit | Value |
|
Project item
|
Unit | Value |
| Engine rated power | kw | 33+90 | Engine brand | FAW xichai/weichai | ||
| Dimensions (working)
Dimensions(folded) |
mm | 2500x2000x4020
2500x2000x2300 |
10 cubic meters
Screw air compressor |
set | included | |
| Pile driving height | m | 2.75 | Air hammer Impact frequency | bpm | 800~1200 | |
| Machine net weight | kg | 3500 | Hammer Impact frequency | bpm | 350~800 | |
| Hydraulic system pressure | Mpa | 16~20 | Work pressure of hydraulic hammer | Mpa | 12~16 | |
| Hydraulic system flow rate | ml/r | 50~63 | Work flow rate of hydraulic hammer | ml/r | 50~63 | |
| Drill hole diameter | mm | 80~180 | Compressed air flow | M3/min | 10 | |
| Drilling speed | mm/min | 500 | Compressed air pressure | Mpa | 1~1.5 | |
| Travel speed | km/h | 10~25 | Traction driving speed | km/h | 30~40 | |
| Punch rod diameter | mm | 85 | Drilling depth | m | 0.5~1.6 | |
| Hydraulic hammer type | yc385 | Climbing ability | Degree | ≦25 | ||
| Power steering (When the power steering is in neutral, the front wheels can change direction freely, which is convenient for towing). Vacuum assisted braking is applied to all four wheels . Mast hydraulic folding. Four directional level ruler displays verticality. Including a 10 cubic meter screw high pressure Air compressor. Hydraulic support legs facilitate stable drilling operation. The pile driver and the air compressor can be divided into two parts or combined into one. The combined type eliminates the laboured operation of alternating hydraulic hammer and air hammer. Won multiple China invention patents. |
Impact crush drilling （I）
High pressure gas drives the impact hammer, the top is driven by hydraulic motor to rotate the impact hammer.(Compressed air flow. approx 8M3/min)
Impact crush drilling （II）

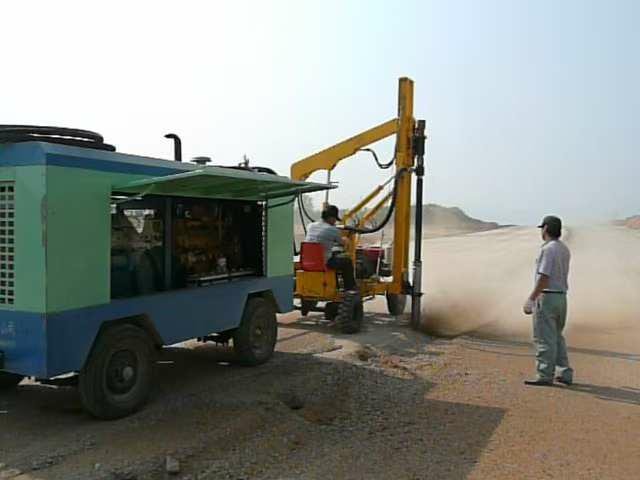

The pile driver drags the air compressor to bore holes. Mounted with hydraulic motor, air impact tool, drill bit. Air flow is introduced into the impact tool by the rotating slip ring.
Impact crush drilling （III）

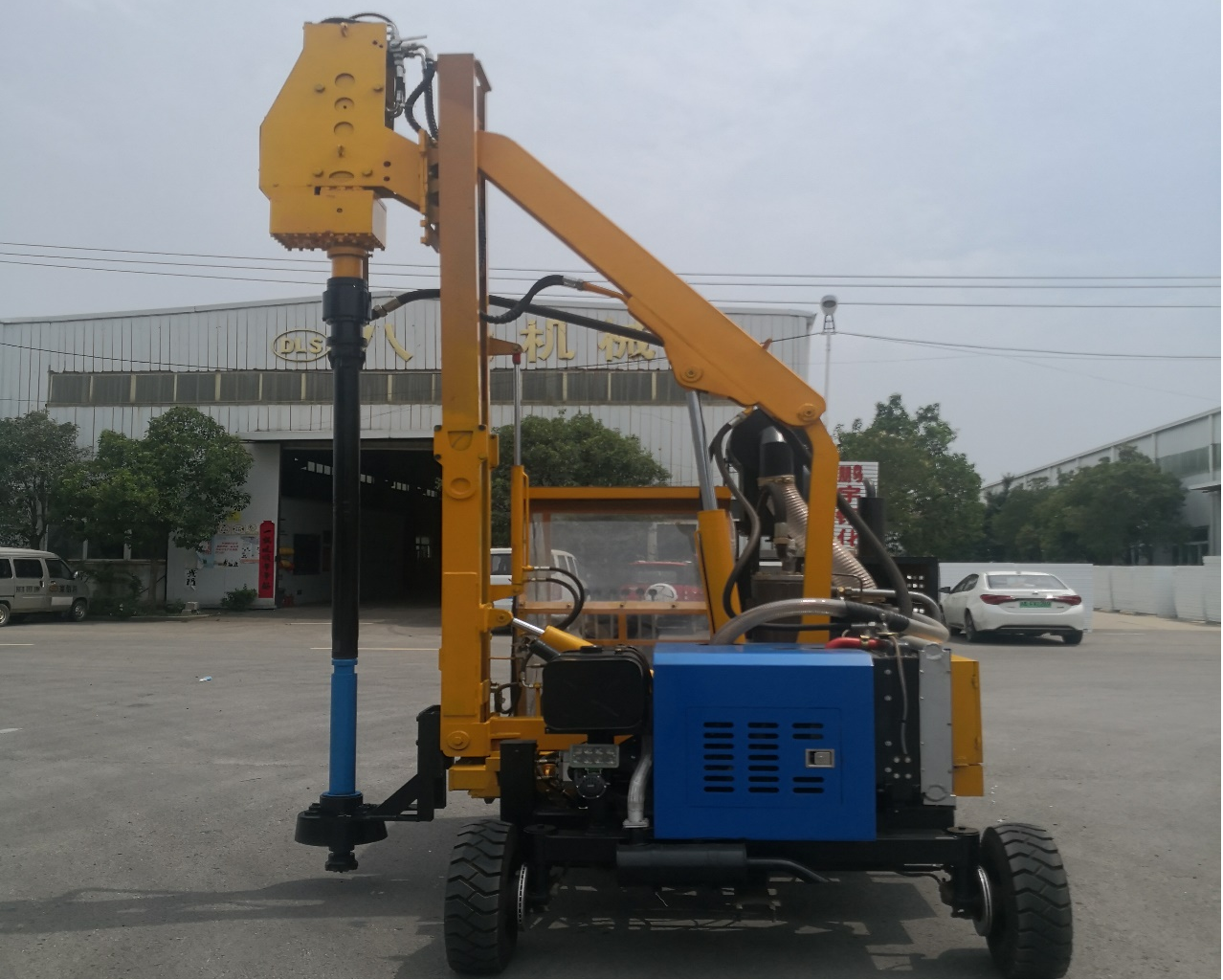

Integrated multifunctional machine with gearbox. Carry out pile driving and drilling operations. （Look at the upper head.）
Introduction to basic operations (I)
The pile driver march, being unfolded from its folded state, forming a working state. Column expansion and hammer rise and fall.
Introduction to basic operations (II)
Straightening of column (front and back direction). Straightening of column (left and right direction).
Introduction to basic operations (III)

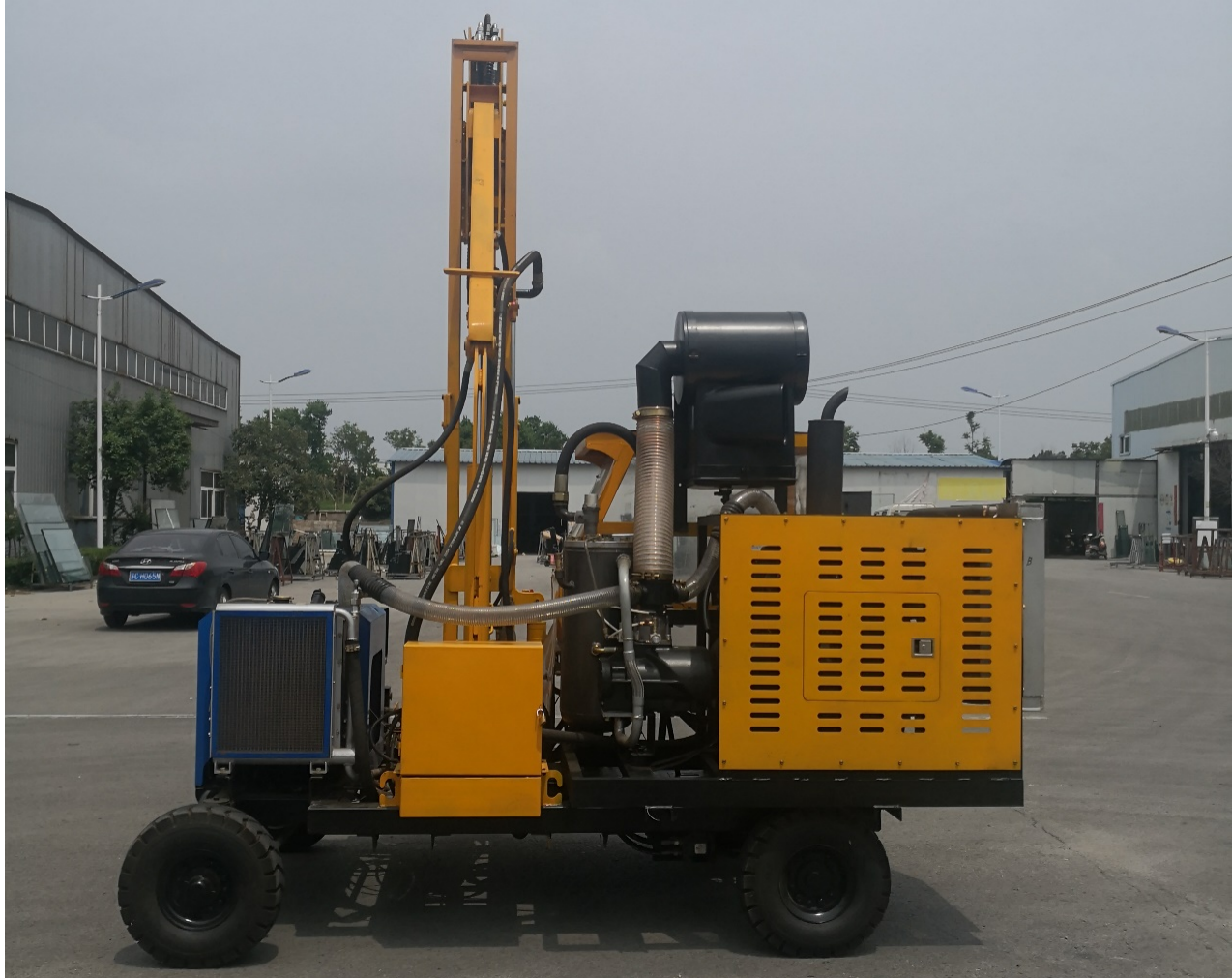

Extend and retract horizontally along the body track. Overall appearance of the machine
