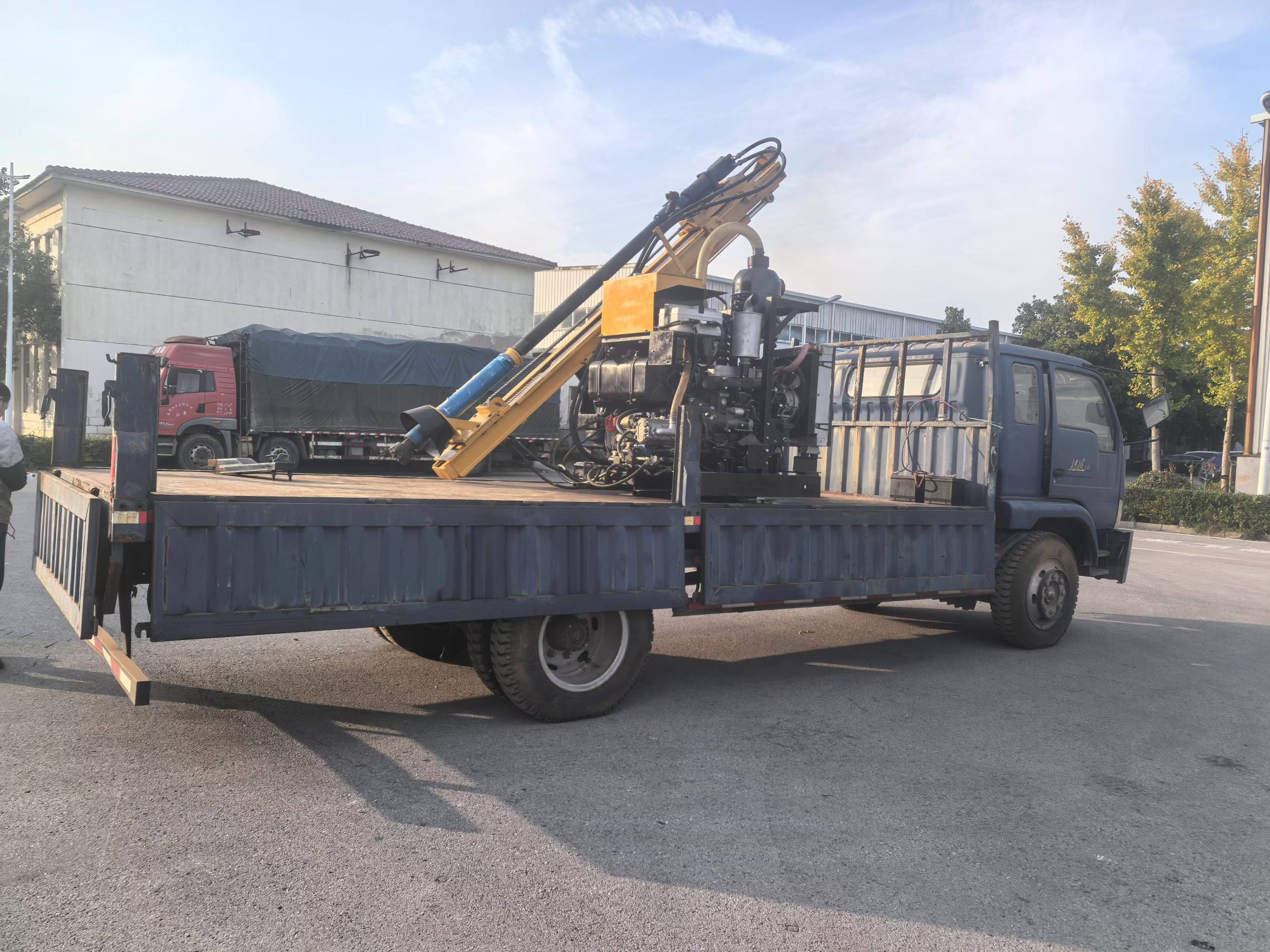

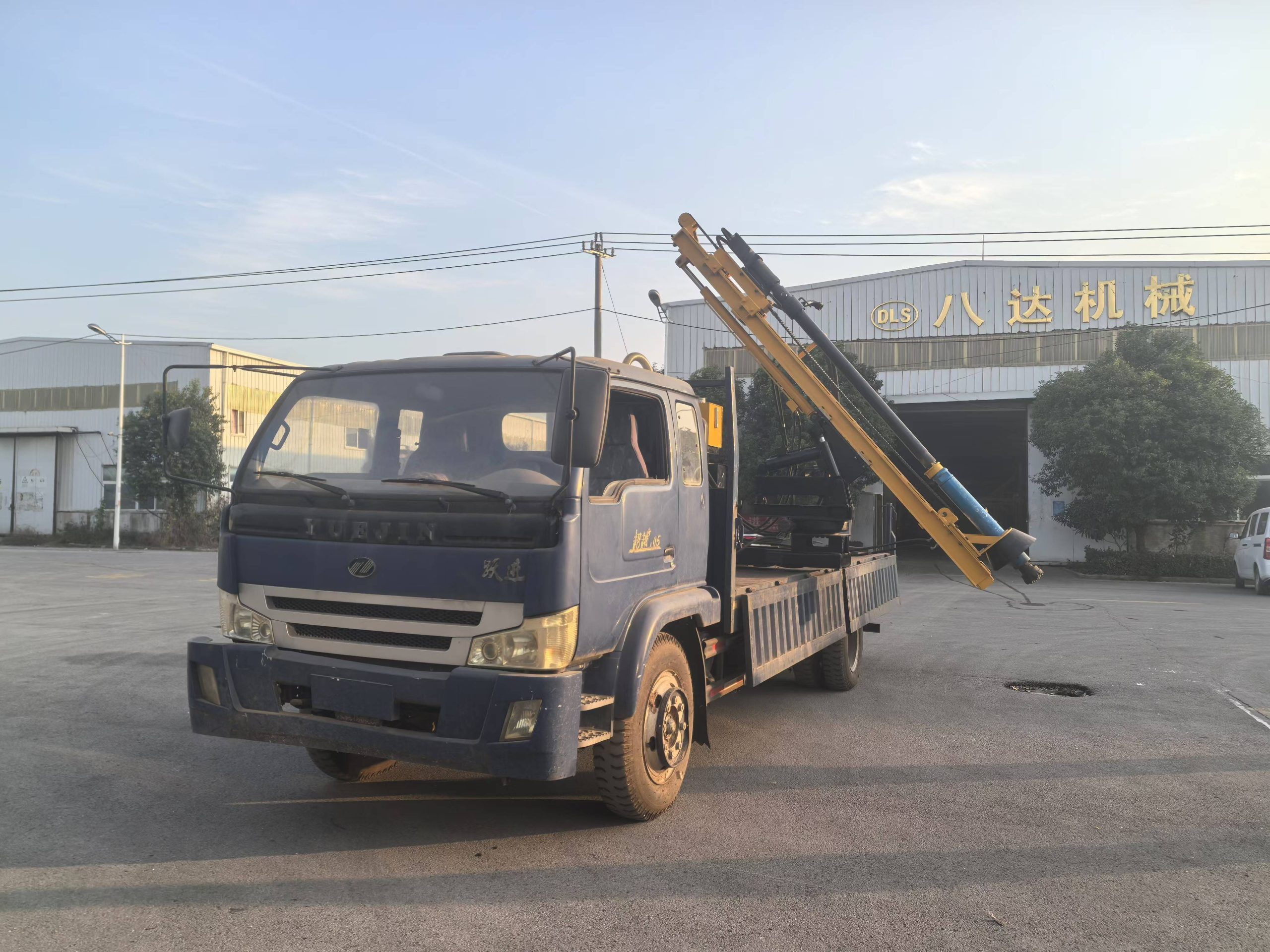

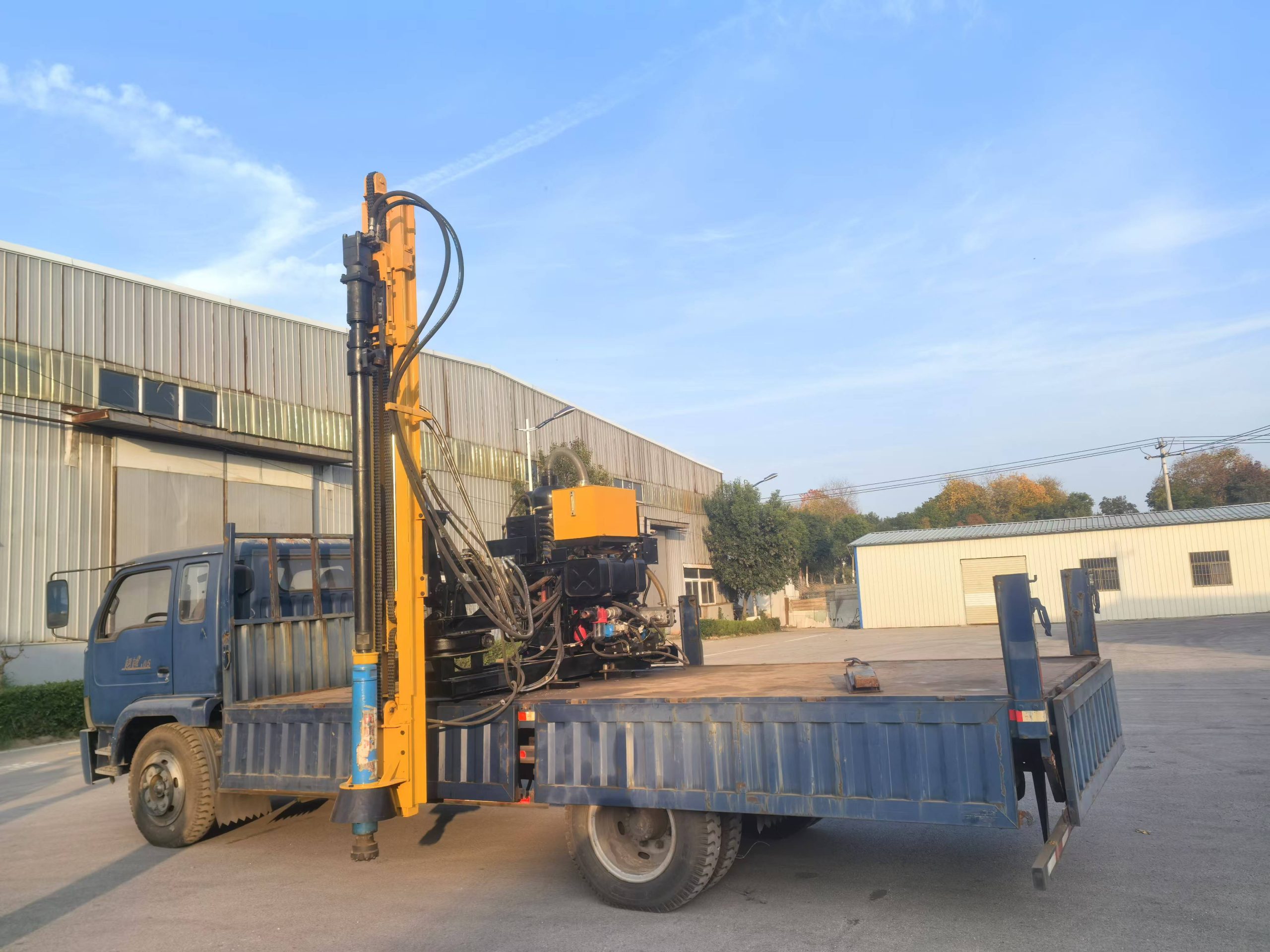

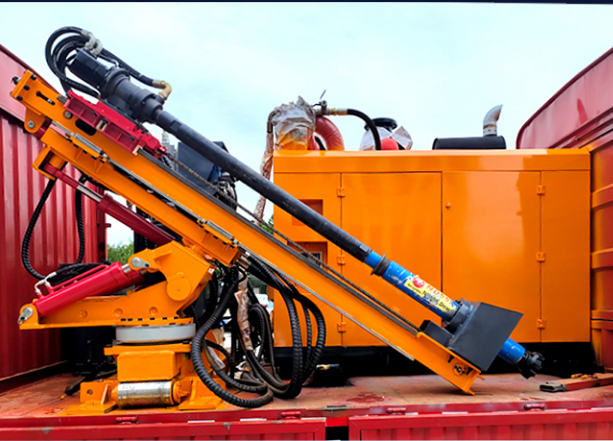

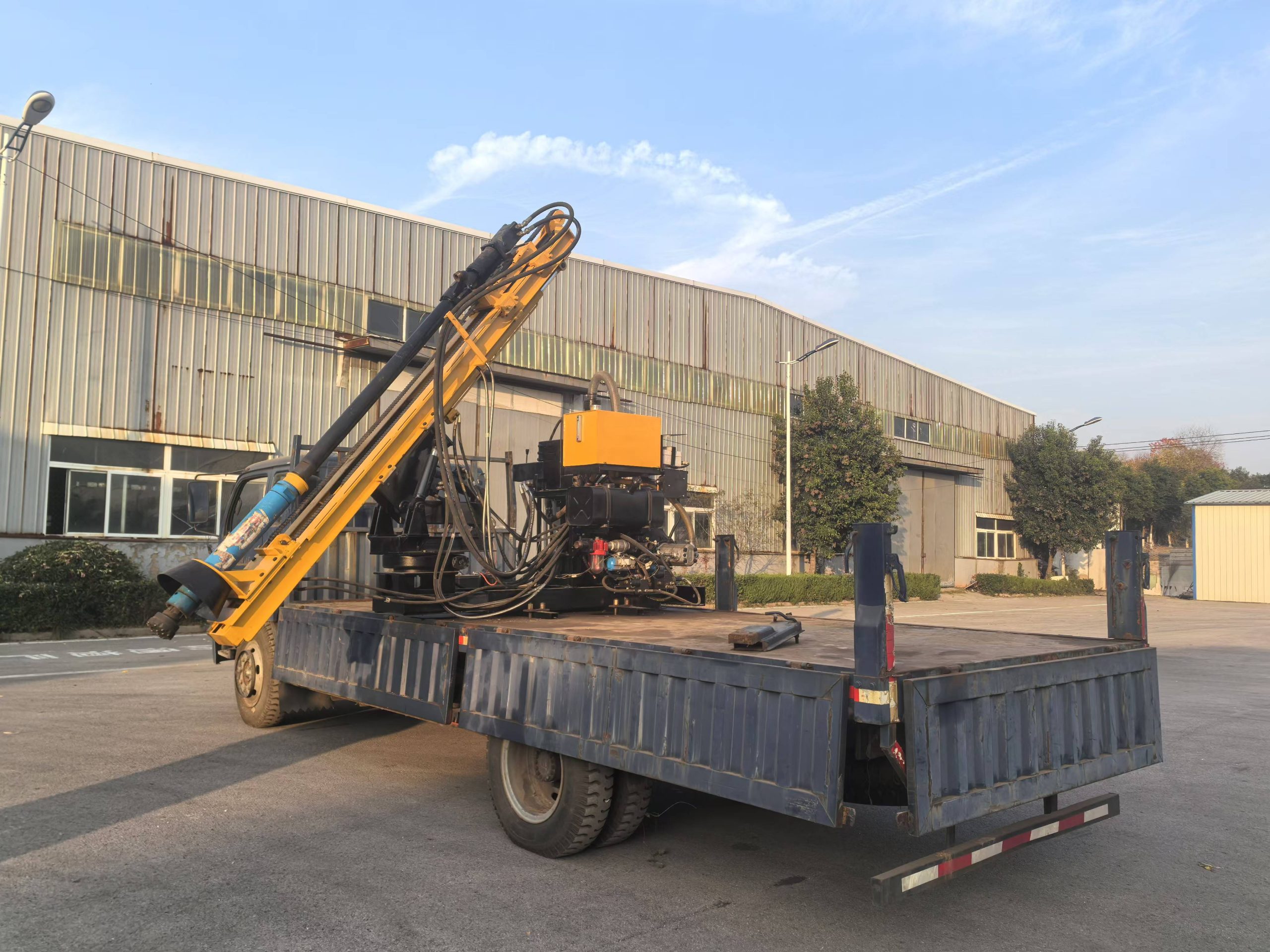

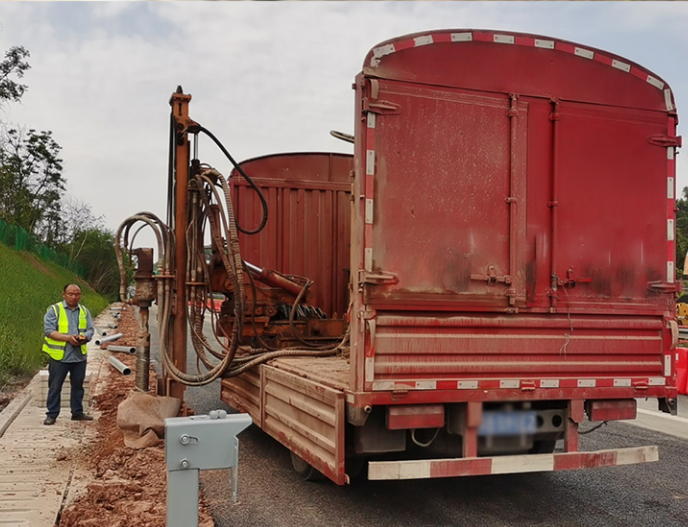

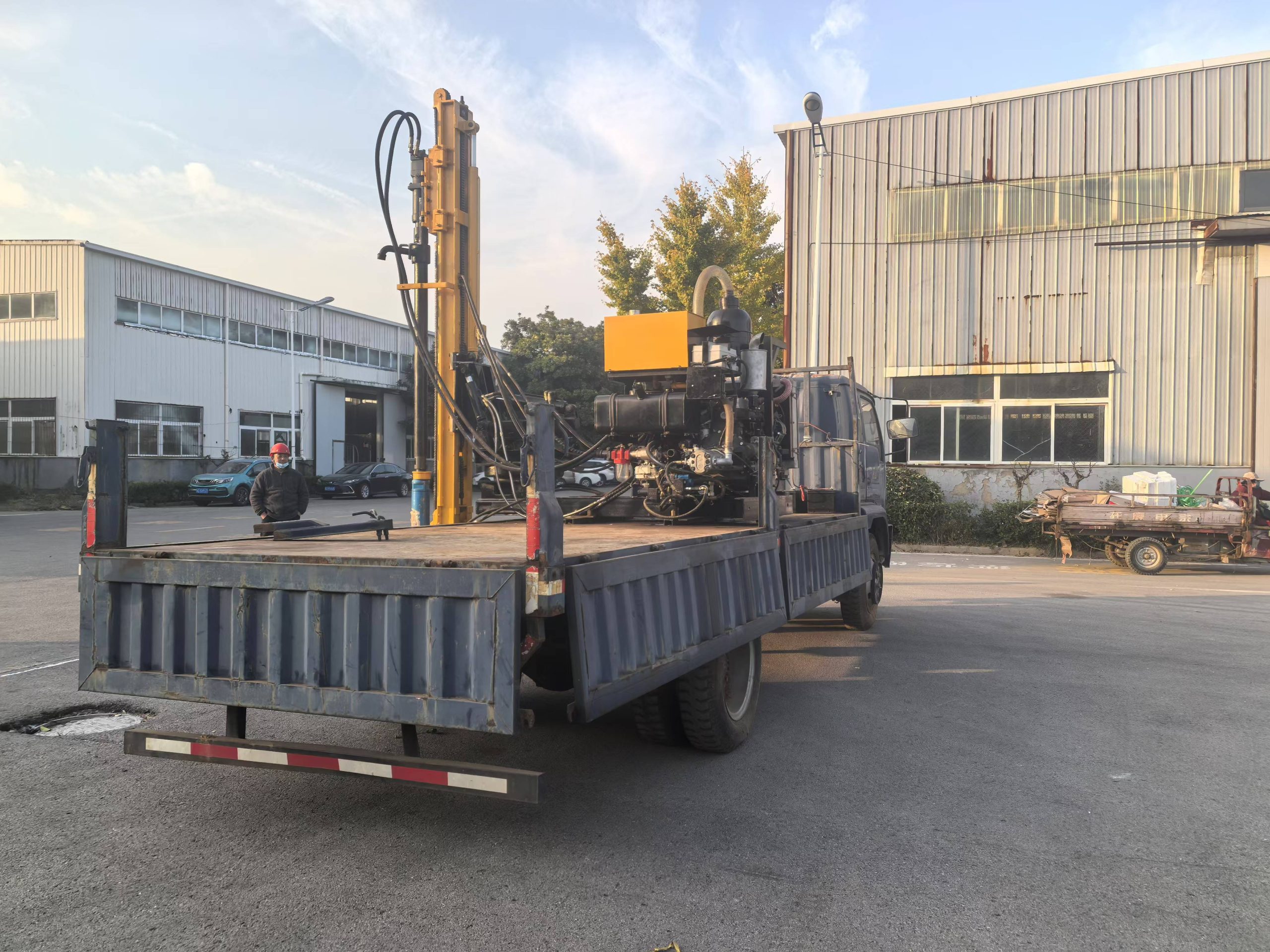

Truck mount pile driving rig

The pile driver can be installed on a truck for pile driving, pile extraction and drilling operations. The host rig is an integrated work device. It be installed on the truck when construction is required. Easy and quick installation. The host rig can also be disassembled from the truck at any time when it is not needed, so the truck can be used for normal cargo transportation. Users can provide trucks for installation on their own. The minimum internal area of the cargo box should ensure a length of 3.8 meters and a width of 2 meters. Radio remote control. Workers are away from dust, improving the working environment.

 FOB Price  12400 USD/Set(Negotiable)



YDB-385pile driver

Project item Unit Value Project item Unit Value
Engine rated power kw 33~38 Engine brand FAW xichai/changchai
Dimensions (working)

Dimensions(folded)

mm 2500x2000x4020

2500x2000x2300

Hydraulic hammer

type

yc360/yc385
Pile driving height m 2.8 plus Impact frequency bpm 350~800
Machine net weight kg 2300 Hydraulic system pressure Mpa 16~20
Workflow of hydraulic hammer L/min 115max Work pressure of hydraulic  hammer Mpa 14~18
Pile driving speed m/min 2 Punch rod diameter mm 85
Travel speed km/h 10~25 Traction driving speed km/h 35max

Air flow and pressure are configured according to customer requirements. Flow rate is 8~15 cubic meters per minute, pressure is 0.7~1.2 MPa.
