Truck Mounted Aerial Work Platform with Telescopic Boom
Frame High strength box frame. Steel grade Q420. Yield strength 420 MPa.
Boom type 4-section polygon synchronous telescopic boom
Slewing type 360 ° continuous rotation
Operation Can be either radio remote control or manual operation.
Controller Intelligent safety protection. The outreach radius is automatically limited according to the slewing angle.
Display LCD screen displays height, elevation angle, slewing angle and other information. And parameter setting
FOB Price 29400 USD/Set（Negotiable）
23 meter truck mounted aerial work platform with telescopic boom
Product Introduction

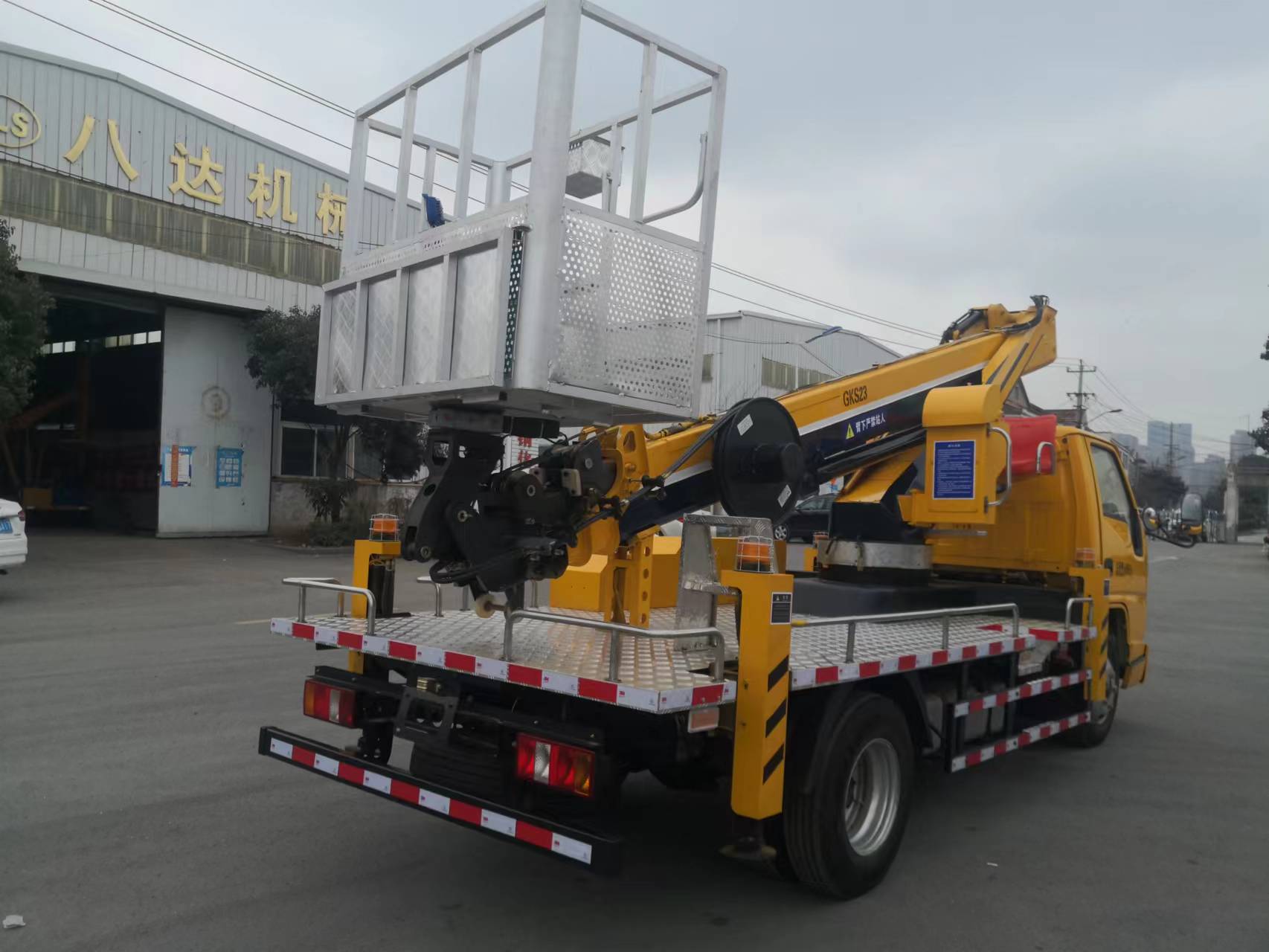

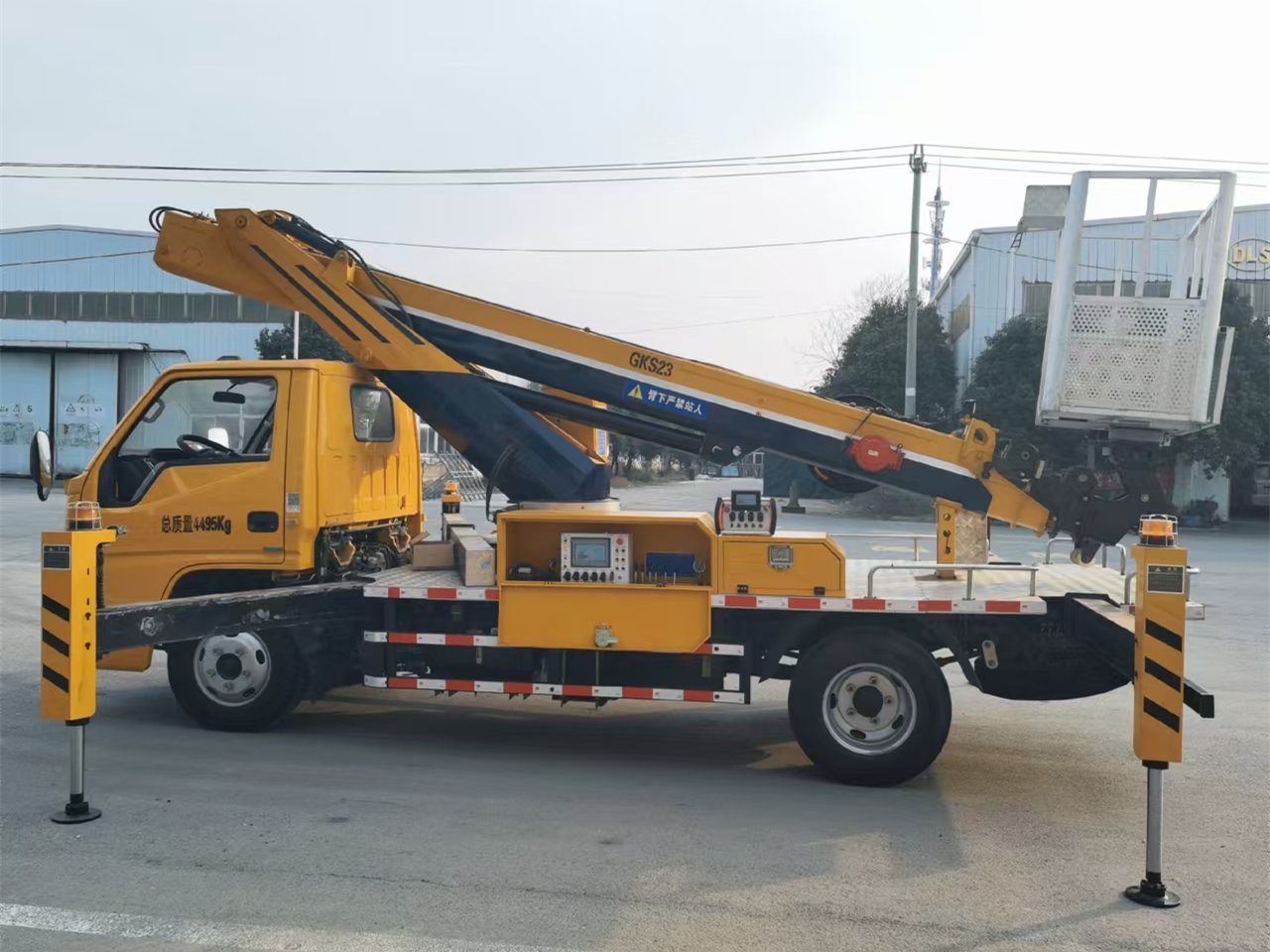

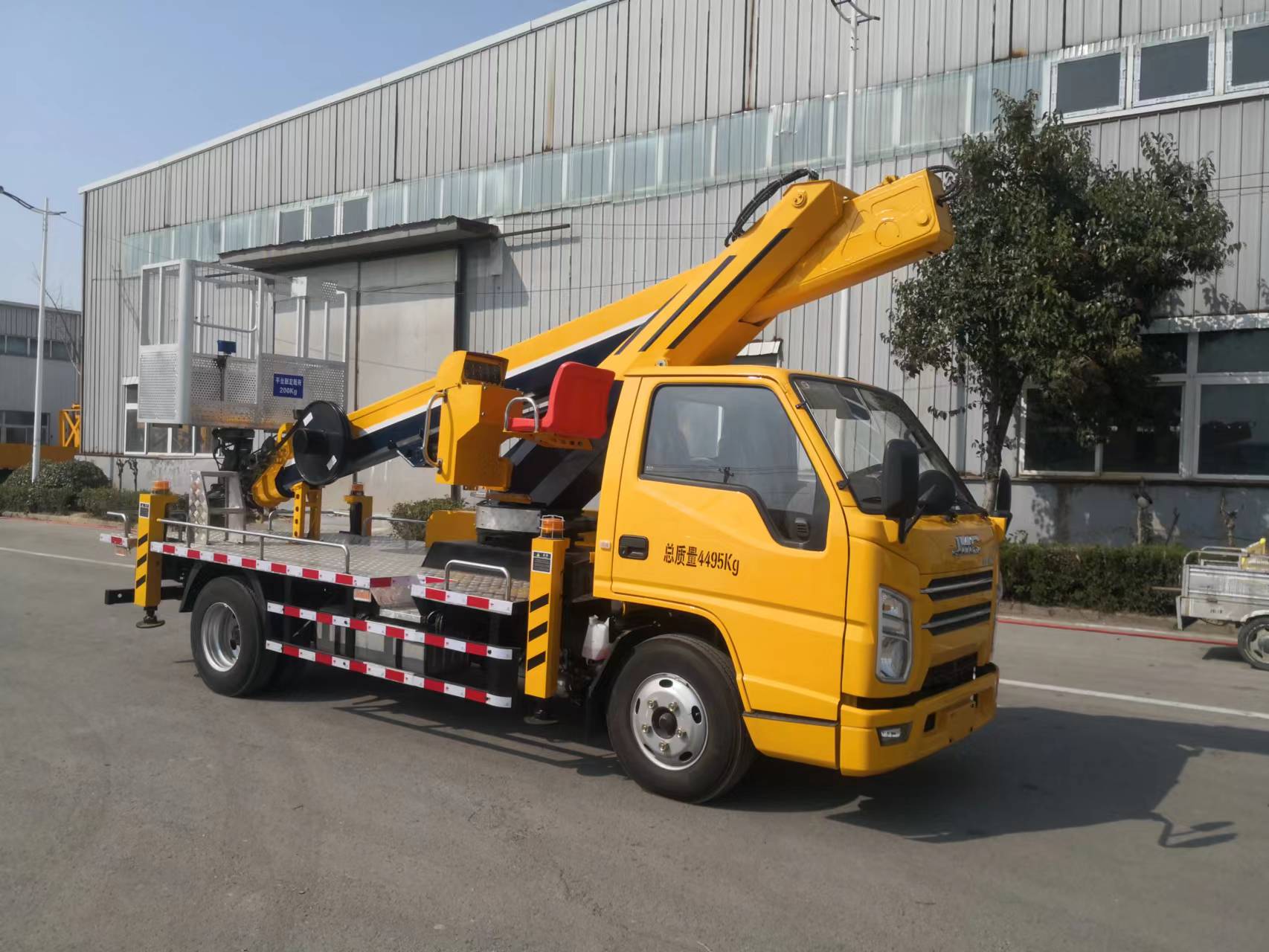

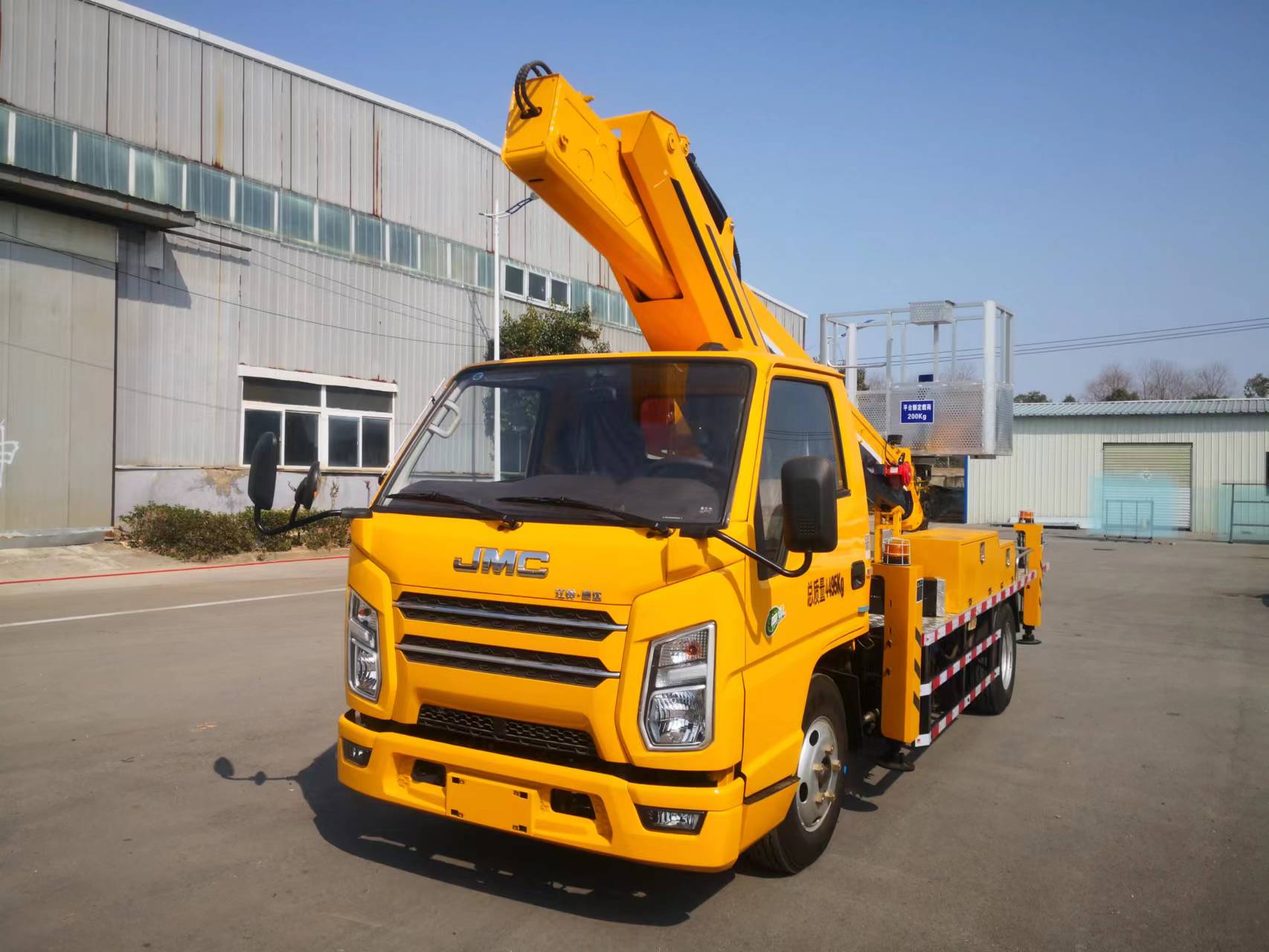

Ⅰ .Appearance of the device( Refer to the above picture)
Ⅱ .Basic vehicle parameters
| No. | Product name | Hantuo brand aerial work platform
|
||
| 1 | Base vehicle brand | Hantuo brand | ||
| 2 | Work height | 23 meter | ||
| 3 |
Main technical parameters of the assignment |
Operation position: turntable, remote operation. Control mode: ZYK bus control system, electro-hydraulic proportional control system, to achieve stepless speed regulation. |
||
|
support leg ( outrigger)
|
||||
|
Main operation |
||||
| 4 | Fence and walkway slab | Stainless steel fence and nonslip walkway plate | ||
| 5 | Boom structure form | 4-section telescopic working arm, synchronous extension | ||
| 6 | Rotary device | Slewing ring and bucket can be rotated continuously in bidirectional 360 degrees. | ||
| 7 | Engine | JX1041TG25 85kw | ||
| 8 | Outer dimensions | 5998×2120×3140 | ||
| 9 | Total mass | 4495kg | ||
| 10 | Equipment mass | 4365kg | ||
| 11 | Hub spacing | 3360mm | ||
| 12 | Green certification/Tax exemption | Yes/Yes
|
Chassis configuration:
Adopt Jiangling Shunda National VI single-row cab, type JX1041TG25, JX493ZQ5. 85 kW diesel engine, power steering, 3360 mm hub-spacing, 7.00R16 steel radial tires, 5- speed gearbox, hydraulic brakes, air conditioning.etc.
Upper equipment:
Working height 23 meters. The upper decoration color is engineering yellow; The whole vehicle is equipped with four hydraulic telescopic support legs (both up or down and horizontal can be telescopic),A total of eight hydraulic cylinders, the support legs are front V and rear H type; Manual emergency hydraulic pump, working bucket with 360 degree rotation, radio remote control, and other equipment are equipped according to the factory standard.
Ⅲ.Introduction to the performance characteristics of truck mounted aerial work platform:
- Function introduction:
The telescopic straight-arm aerial work platform has a working height of 23 meters, uses a fully telescopic working boom, has a large span of legs, good stability, can be operated simultaneously or separately, safe and reliable, compact structure, convenient operation, and has a fast lifting speed, high work efficiency. It has flexibility can also operate flexibly in densely high-rise buildings, which is a excellent aerial work platform, leading the new trend of the industry.
It is widely used in municipal, power, street lamp, advertising, communication, photography, garden, shipbuilding, traffic, airport and port, emergency rescue, industrial and mining enterprises and other industries for installation, maintenance and high-altitude operations.
- Product overview:
(1) Jiangling Shunda type 23m aerial work platform adopts telescopic straight arm structure, the working boom is 4-sectionopic, the whole vehicle can be operated manually, and also can be operated by remote control, the boom can rotate 360 degrees, four hydraulic support legs, the working bucket can bear a maximum weight of 200 kilograms, aluminum fence plate, pattern nonskid walkway plate.

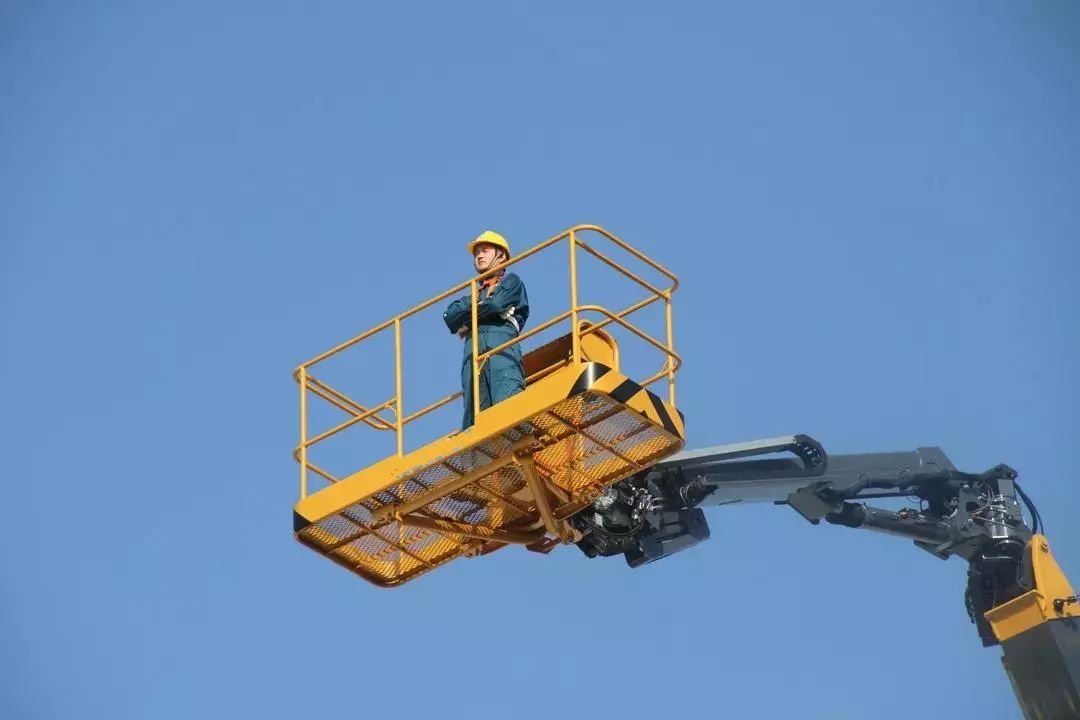

(2) The working bucket adopts a mechanical self-balancing design, which ensures that the working bucket remains horizontal during operation.
(3) Night operation lamp. The console can be equipped with operation lighting lamps according to the customer’s working environment, making night operation safer.
(4) Computer control, automatic limitation of boom angle, dangerous work alarm, and outstanding safety performance. The base vehicle is equipped with a display screen, which shows overall working condition of the vehicle in real time.
(5) The hexagonal working arm increases strength, extends synchronously, has a compact structure, high working efficiency, and a large working range. The telescopic cylinder external, making it easier to observe the fault point and convenient for maintenance.
(6) The outriggers adopt the structure of front V and rear H, with larger bearing area and higher stability; it can prevent the beam from deform or breaking. The outriggers can be adjusted separately, and each outrigger can be adjusted separately according to the working terrain, so that the whole vehicle can be adjusted to horizontal state even if the ground is uneven.
(7) The four vertical legs and telescopic, luffing and balancing cylinders are all equipped with double-acting hydraulic locks, which are used to lock cylinder in place after it reaches the desired position to prevent accidents. Double-acting balance valves are installed on the working boom to make the working arm more reliable.
(8) The main components such as two-way hydraulic locks, two-way locking balance valves, hydraulic valves, hydraulic cylinders, engine fault emergency pumps, systems and their control computers are all made by well-known domestic brands, and the core components are imported. The reversing is stable, the operation is flexible and convenient; the outrigger and the working arm are interlocked, safe and reliable, and the wrong operation is prevented.
Ⅳ. Features and advantages of 23 meter truck mounted aerial work platform with telescopic boom
- The overall structure is compact, with a short exterior dimension, easy to drive and flexible steering.
- The whole vehicle adopts a fully electronic control system with multiple safety protection functions.
1、Each outrigger has a soft leg ground protection function (optional), or the whole vehicle tilt protection function (optional).
2、Outrigger locking, when the boom is working, it is not allowed to operate the outrigger (restricted action).
- Automatic limitation of working amplitude (working radius).
4、Body configuration large screen display, can display boom length, working height, working amplitude, tilt angle.
5、Basket automatic leveling, (each basket and boom are connected by a cylinder)
6、Equipped with a wireless remote control, LCD display shows all kinds of data. The operation boom has protection when going up and down.
7、Configure 2-4kw DC/AC inverter, which can be used for the operation of manual tools, etc
8、Manual emergency pump operation. If the engine fails or the battery is dead, the manual emergency pump can be used to retract the entire boom.
Multiple maneuvers operation（I）
The telescopic boom extends and retracts. Each section of the boom moves synchronously.
Maneuvers operation（II）

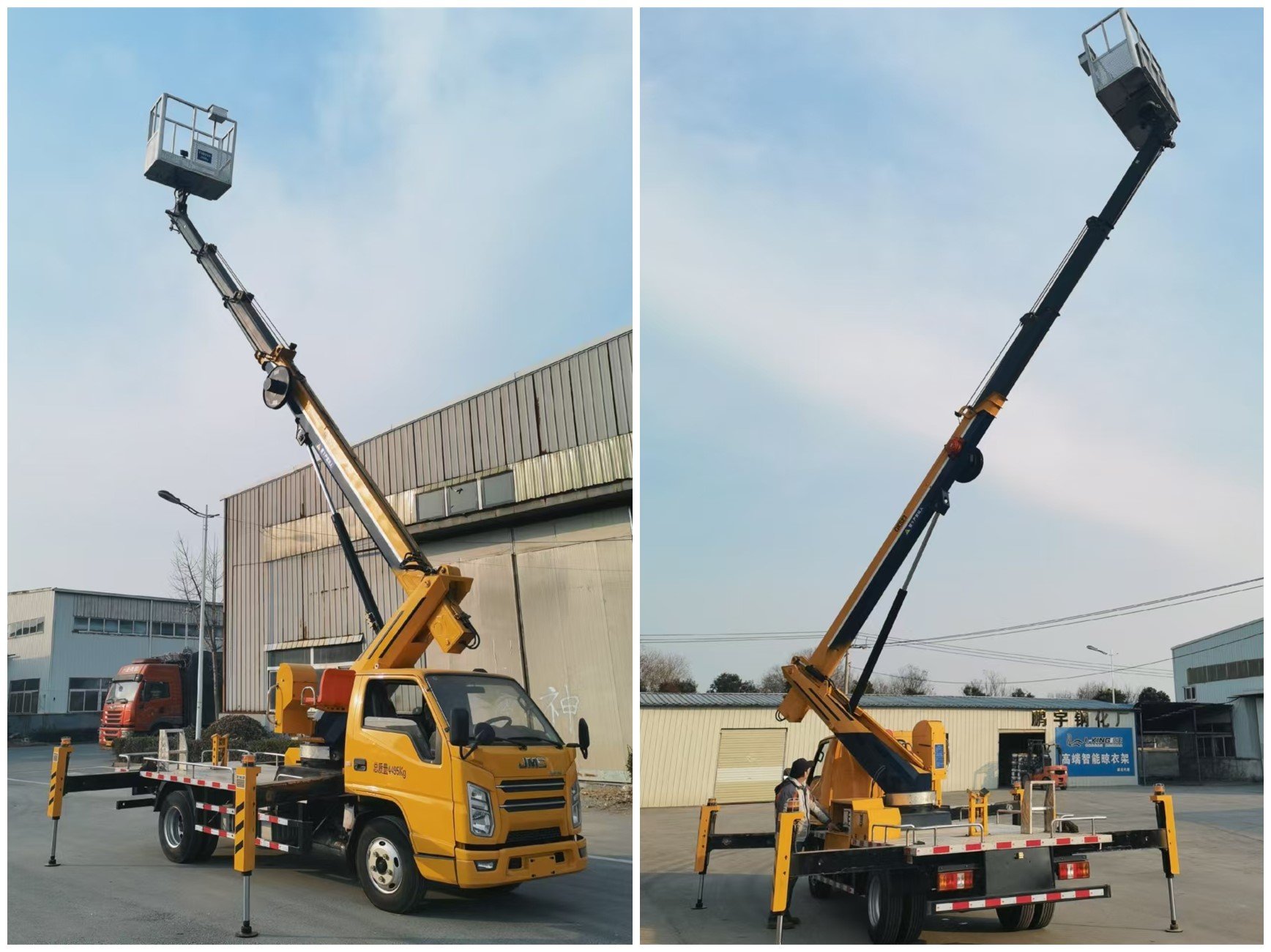

Master column is lift up and then the telescopic boom stretched out.
Maneuvers operation（V）
Use radio control to reset. (Retract the boom. The basket’s bowing, gazing up and spinning. Master column descends.)
